Hydraulic Magnetic Circuit Breaker

Quantity:
Contact Now
Add To Cart

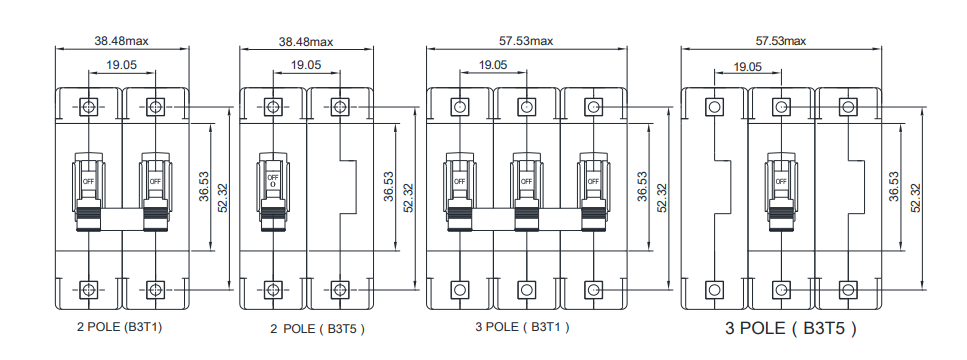

B3T1 3P 1A-300A 80VDC/480VAC UL1077/UL489
The circuit breaker is used inAC50Hz/60Hz,rated voltage DC80V or AC480V equipment network circuit. It is mainly used for a variety of equipment and lines to provide accurate and reliable short circuit and overload protection.
Maximum voltage: 480/277VAC 50/60 Hz, 80VDC
Current Ratings: 1A to 100A（UL489A 1P up to 125A）
Auxiliary switch: SPDT,5A 250VAC, 1.0A 80VDC
Operating Temperature: -40℃to +85℃
Number of poles: 1 pole, 2 poles, 3 poles
Agency Certifications: IEC/EN 60934, UL1077, GB17701, UL489A ,UL489 and CE
