Energy Storage Connector 80A-130A
Rated Current:
80A - 130A
Quantity:
E57
Rated current: 80A-130A
Wire diameter: 10mm²-25mm²
Maximum voltage: 1500V DC
Color: Orange, Black, Red
Operating Temperature: -40℃to +125℃
Protection Grade: IP67
Agency Certifications: UL, CE, TÜV
Wire diameter: 10mm²-25mm²
Maximum voltage: 1500V DC
Color: Orange, Black, Red
Operating Temperature: -40℃to +125℃
Protection Grade: IP67
Agency Certifications: UL, CE, TÜV
DESCRIPTION
Battery energy storage connector E Series
- This series of electrical connectors and wiring harness assemblies is a product developed by our company specifically for the energy storage industry, mainly used in battery storage systems, distribution boxes, etc. It is the preferred solution for the new generation of energy storage systems.
- The product terminal adopts a torsion spring structure, with multiple contact points to ensure high contact reliability of the product. It has the advantages of soft insertion and extraction force, strong impact and vibration resistance, and large load.
- The product can be quickly inserted and pulled out, and can be inserted and pulled out at any angle of 360 °. After insertion, the wire can be rotated at any angle of 360 °.
- The positive and negative poles of the product have structural error prevention function and color visual error prevention function, meeting the requirements of preventing incorrect insertion and use.
Battery energy storage connector

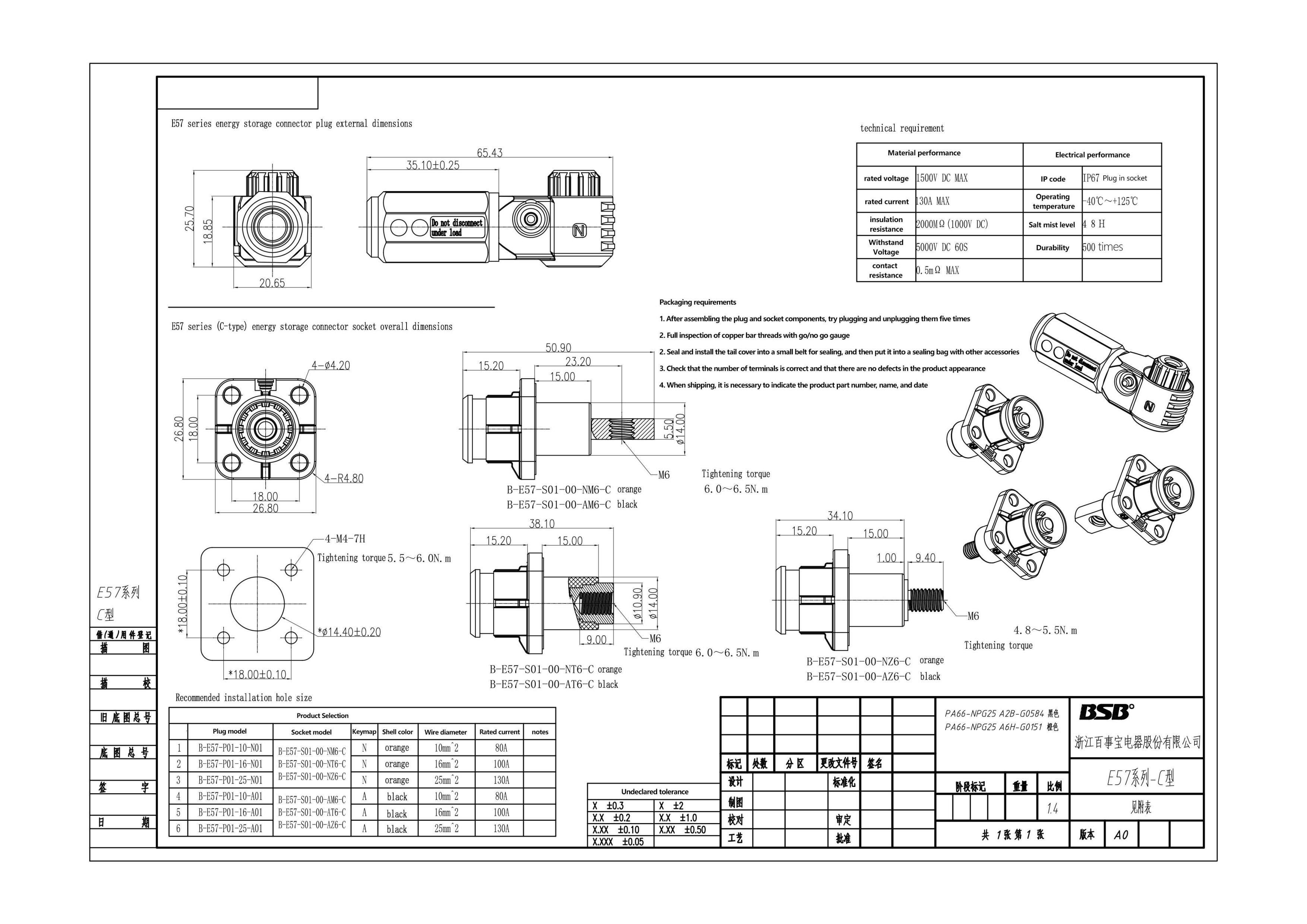

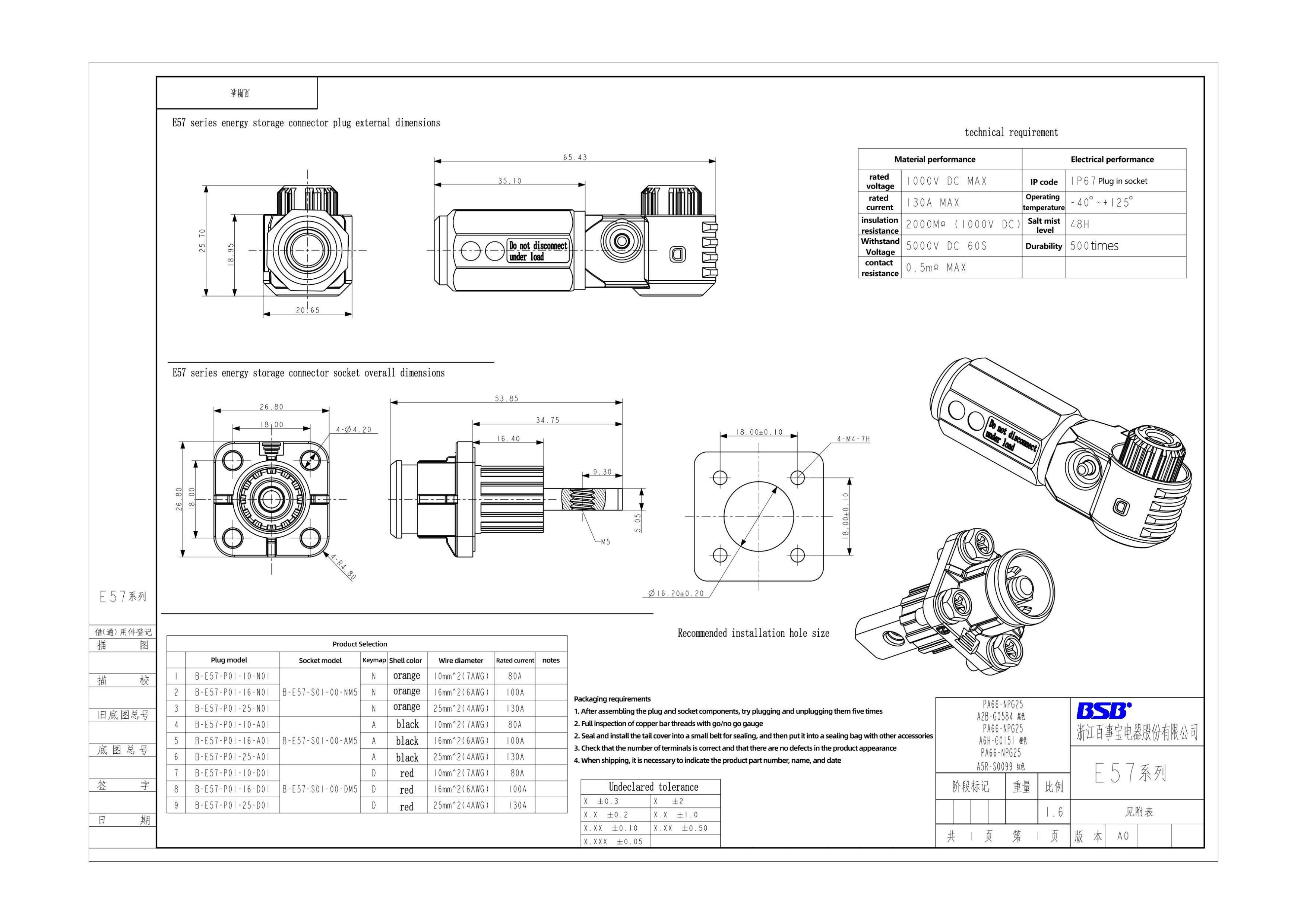

-Battery energy storage connector Model E57-A type (BESS Connector)

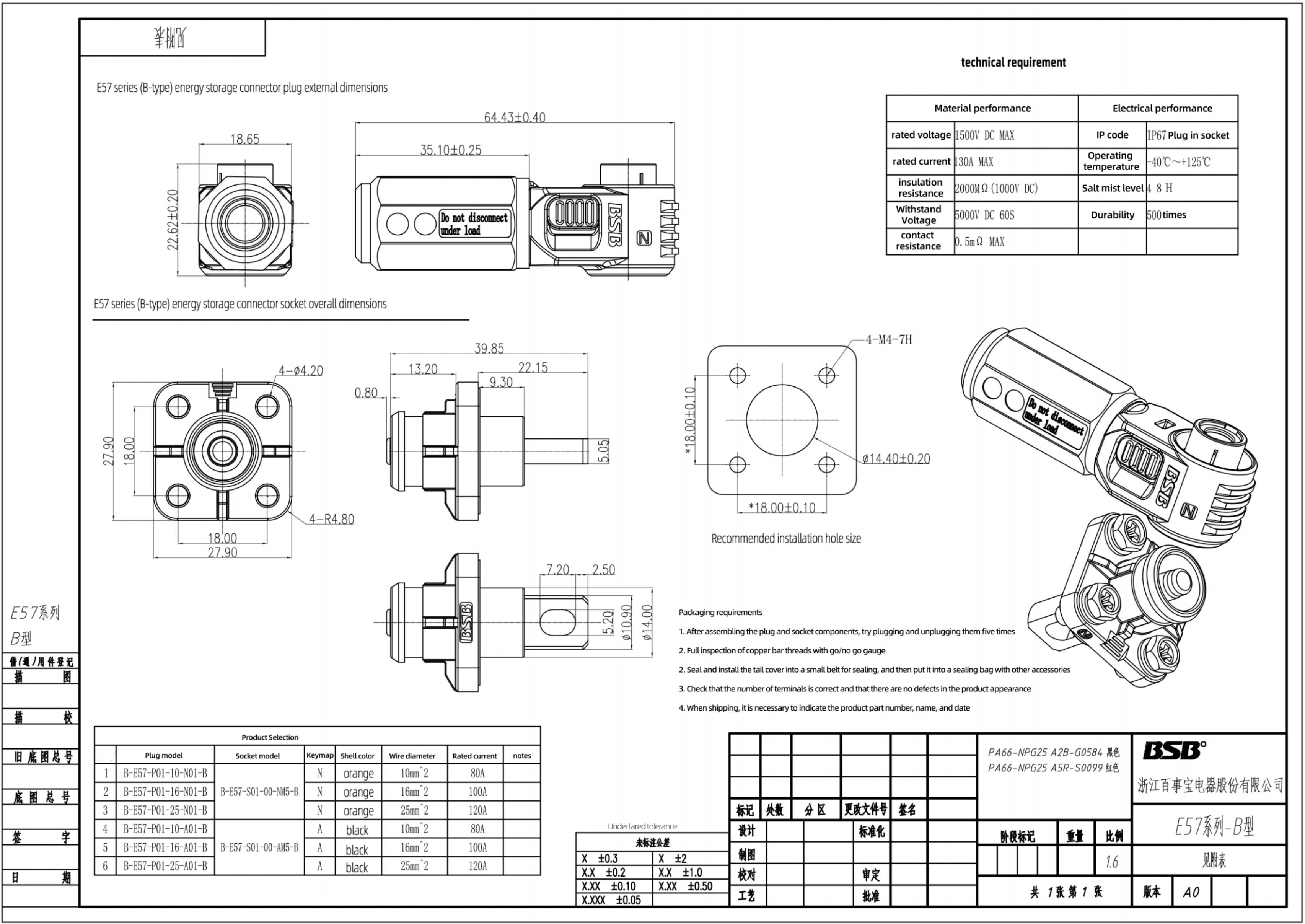

-Battery energy storage connector Model E57-B type (BESS Connector)
-Battery energy storage connector Model E57-C type (BESS Connector)

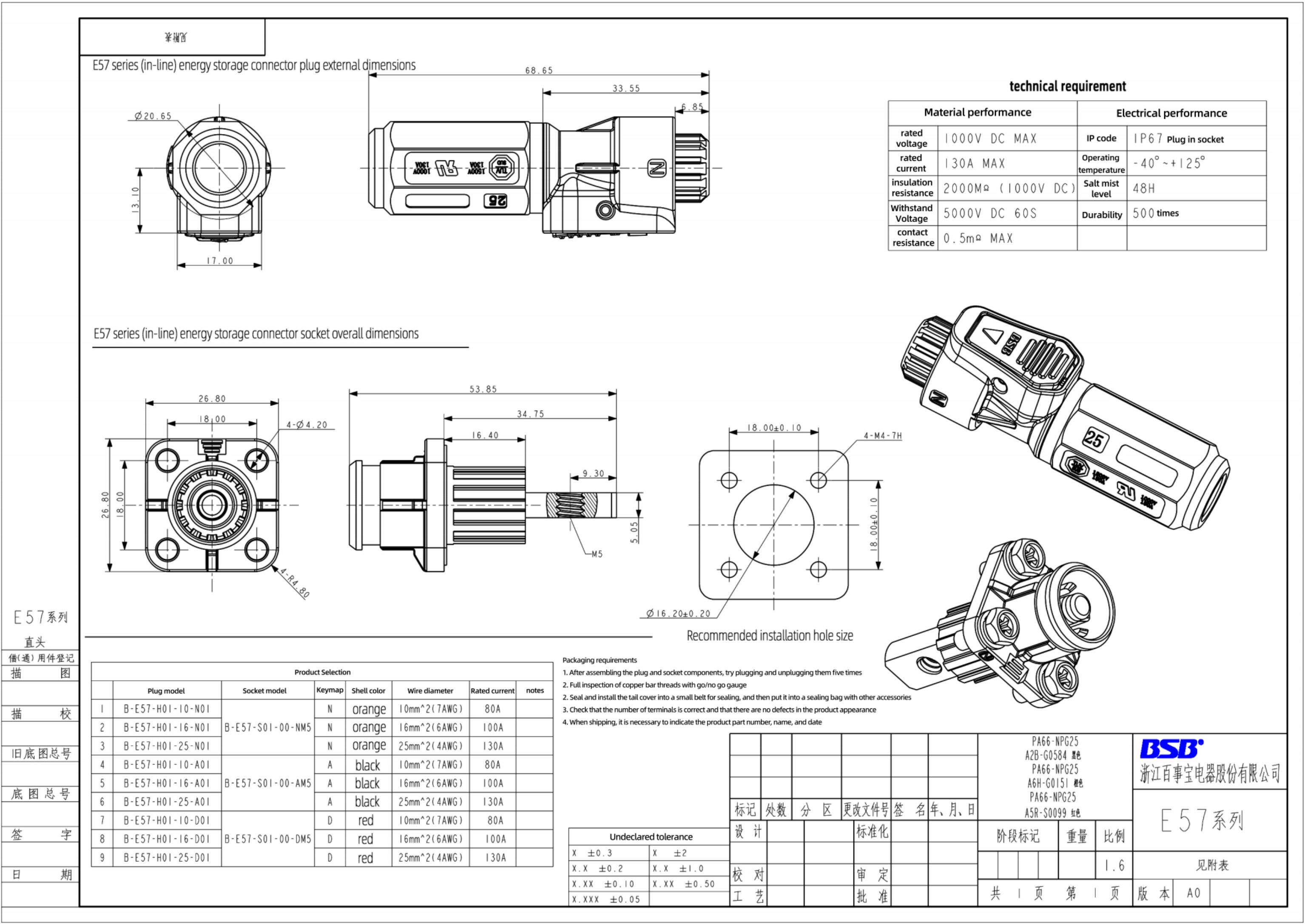

-Battery energy storage connector Model E57-Straight (BESS Connector)
