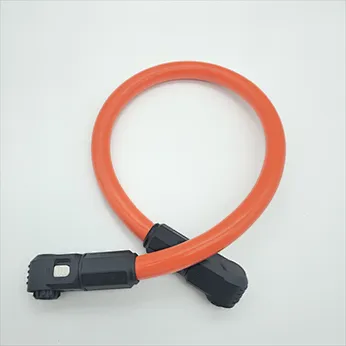

High voltage cable wiring harness
Quantity:
BSB wiring harness
● The design of the connector combines an integral latch system to ensure clear electrical and mechanical connections.
● The connector housing is made of durable thermoplastic material with excellent mechanical properties and complies with RoHS standards.
● Battery cables have flame retardancy and are easy to peel and cut.
● The contacts are made of high-quality copper alloy to ensure reliable electrical connections.
● The connector housing is made of durable thermoplastic material with excellent mechanical properties and complies with RoHS standards.
● Battery cables have flame retardancy and are easy to peel and cut.
● The contacts are made of high-quality copper alloy to ensure reliable electrical connections.
Descruiption (High voltage wiring harness) (Energy storage cable wiring harness)
High voltage wiring harness/Energy storage cable wiring harness | |
scope of application (High voltage wiring harness, Energy storage cable wiring harness) | Widely used for photovoltaic energy storage, communication base station energy storage, mobile energy storage, and shared energy storage. Suitable for power lines between boxes, main control box power lines, combiner box power lines, total positive and total negative wiring harnesses |
Wire diameter | 4-120mm² |
Rated current | 50-350A |
Rated voltage | 1500V |
Rated temperature | -45°~ +125° |
Flame retardant grade | UL94V-0/VW-1 |
Protection level (plug-in) | IP67 |
Environmental attributes | RoHS/REACH |
High voltage energy storage wiring harness
High voltage wiring harness
