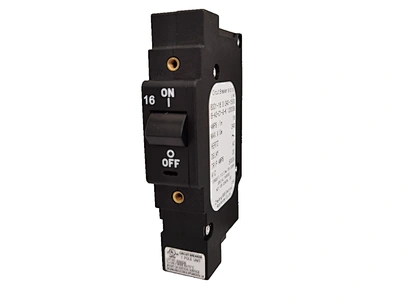

Hydraulic Magnetic Circuit Breaker
Quantity:
B1 1P 1-40A 80VDC, 250VAC
B1 series product is a hydraulic electromagnetic circuit breaker which our company design and develop by adopting international advanced technology.The circuit breaker consists of shell,operating mechanism,contact arc extinguishing system and hydraulic solenoid tripping device and other parts.The circuit breaker is used in AC50Hz/60Hz,rated voltage DC80V or AC250V equipment network circuit.It is mainly used for a variety of equipment and lines to provide accurate and reliable short circuit and overload protection.
Maximum voltage: 250VAC 50/60 Hz, 80VDC.
Current Ratings: 1A to 40A.
Auxiliary switch: SPDT,3A (0.5A) 125/250VAC, 3A 30VDC.
Insulation resistance: at 500VDC, minimally 100 mega Ω.
Dielectric strength: UL/CSA product, 1500V between the terminals, 1 minute under AC.

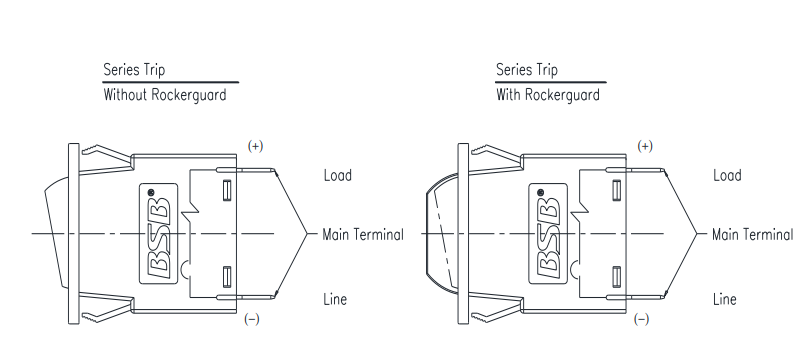

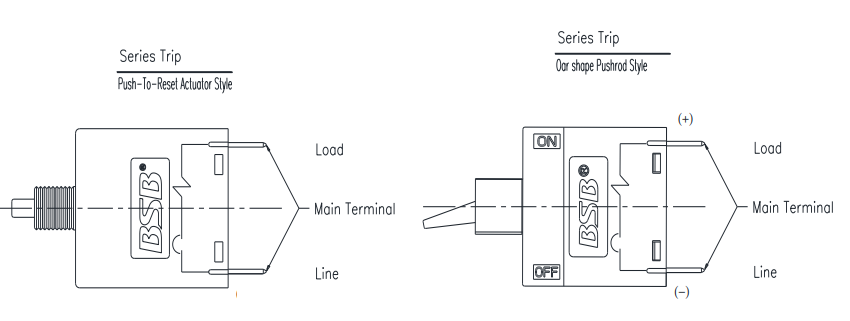

Resistance, Impedance: Values from Line to Load Terminal-based on Series Trip Circuit Breaker
