    Hydraulic Electromagnetic Circuit Breakers , Ite Pushmatic Circuit Breakers

    Quantity:
    Contact Now
    Add To Cart

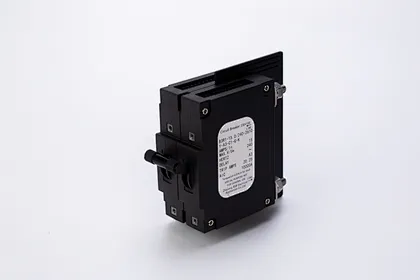

    Breakers Series B3R
    Maximum voltage: 250VAC, 80VDC277/480VAC, 65VDC
    Current Ratings: 1A to 125A.
    Operating Temperature: -40℃to +85℃
    Number of poles: 1-3 poles
    Agency Certifications: TÜV, CCC, UL489
    Short Circuit Capacity: 10KA
    B3R Series circuit breaker for equipment is suitable for overload and short circuit protection in electrical systems with rated current AA to 125A, AC50/60Hz, rated voltage AC 480V and below, and can also be used for infrequent switching and breaking. Widely used in computers and peripherals, industrial automation devices, telecommunication equipment, communication power supply system and UPS equipment, railway locomotives, Marine electrical systems, elevator control systems, and mobile power equipment.
